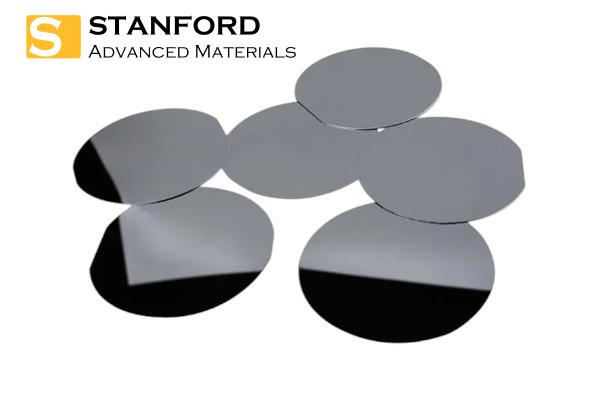

CY2174 Silicon Wafer

Catalog No

CY2174

Material

Thickness

275 μm ~ 775 μm

Conductive Type

N - type / Semi-insulating

Diameter

Ø 1" / Ø 2" / Ø 3" / Ø 4" / Ø 6" / Ø 8" / Ø 12"

Electrical Resistance

0.01 ~ 10000 ohm-cm

Growth

CZ / FZ

Stanford Optics manufactures silicon wafers with diameters ranging from 1″ (50.8 mm) to 12″ (304.8 mm), thereby offering maximum flexibility. To accommodate the widest array of specifications, we employ either Czochralski (Cz) or Float Zone (FZ) silicon wafer fabrication methods.

INQUIRE NOW

Description

Silicon wafers are the cornerstone of semiconductor manufacturing, integral to the production of all electronic devices that enhance our daily lives. Renowned for their versatility and exceptional electrical properties, silicon wafers are the most widely utilized material across a multitude of high-tech industries. The unique electrical characteristics of silicon enable the creation of integrated circuits (ICs), which serve as the fundamental commands driving various electronic applications.
